- High-Visibility LED Configuration: 22 LED heads with amber flashing, red stop/tail/turn, and white work lights.
- Customizable Warning Patterns: 30 flashing patterns and 10 traffic director options for maximum safety.
- Pilot Mode: Eliminates dark time between flashes for continuous illumination.
- Durable Design: Includes heavy-duty tow brackets, 25-foot cable, and easy serviceability.
- Compliance Standards: SAE J595 Class 1, J845 Class 1A, and CA Title 13 approved.
- Low Power & Front Cut-Off Modes: Discrete wiring enables programming without a laptop.
- Dual Voltage Compatibility: Operates seamlessly on 12V and 24V systems.

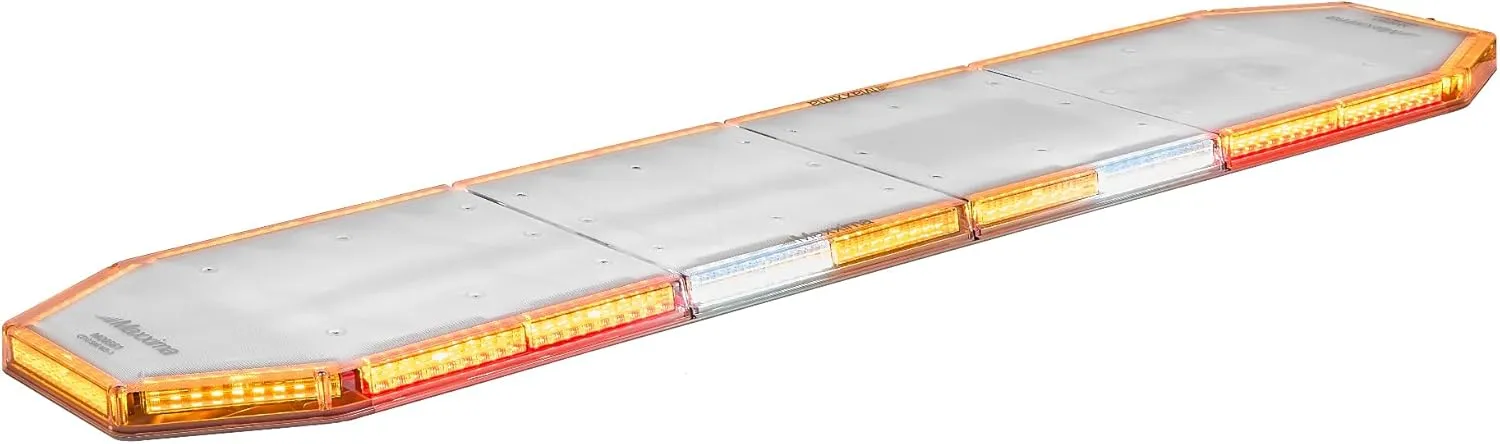

The M20561 is a 60” low profile linear LED lightbar designed for tow & recovery applications. It is fully populated with 22 LED heads including amber flashing, red stop/turn/tails (STT) and white work lights as well as a built-in, all-amber traffic director. It is fully programmable with 30 selectable warning patterns, 10 traffic director patterns, and optional “Pilot Mode” with no dark time between flashes. It includes discrete wires for “Low Power” or Dim Mode and Front Cut Off and 3 program modes or memory slots. It includes a 25-foot, 15-conductor jacketed cable assembly, heavy duty tow brackets and mounting hardware. It is compliant with SAE J595 Class 1, J845 Class 1A, and California Title 13 (CA 13). It is easily serviced while mounted on the vehicle, is supported with a full assortment of service parts, and is backed by Maxxima for 5 years.
